ABS Material Race Car Dashboard Digital LCD Display DO904 6.5 Inch Full Sensor Kit

ABS Material Race Car Dashboard Digital LCD Display DO904 6.5 Inch Full Sensor Kit

    • ABS Material Race Car Dashboard Digital LCD Display DO904 6.5 Inch Full Sensor Kit
    • ABS Material Race Car Dashboard Digital LCD Display DO904 6.5 Inch Full Sensor Kit
  • ABS Material Race Car Dashboard Digital LCD Display DO904 6.5 Inch Full Sensor Kit

    Product Details:

    Place of Origin: CHINA
    Brand Name: SINCO TECH
    Certification: ISO9001
    Model Number: DO904

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: negotiation
    Packaging Details: Color Box ,26*23*19CM,1.5KG
    Delivery Time: 20days
    Payment Terms: Western Union, MoneyGram,Paypal,, T/T
    Supply Ability: 1000 PCS Per Month
    Contact Now
    Detailed Product Description
    Product Name: Digital Auto Dashboard G.W.: 1.5 KG
    Package: 26*23*19 CM Backlight: Green
    Material: ABS Connection: Sensor Kit

    6.5 Inch Full Sensor Kit Race Car Dashboard Digital LCD Display ( DO904 )


    ABS Material Race Car Dashboard Digital LCD Display DO904 6.5 Inch Full Sensor KitABS Material Race Car Dashboard Digital LCD Display DO904 6.5 Inch Full Sensor KitABS Material Race Car Dashboard Digital LCD Display DO904 6.5 Inch Full Sensor Kit

    KEYS:



    A. LED

    (Four LED light is on each top side of the frame and will light according to the different RPM. The light color is GREEN, GREEN, YELLOW, RED from bottom to top.)

    B. Upper Select Key

    (choose and adjust the number value)

    C. Lower Select Key

    (choose and adjust the number value)

    D. Menu Key

    (set up MENU and confirm functions)

    E. Exit Key

    (exit or cancel the setting.)

    F. Power Plug

    (there are two power plugs on the display, one is on the left,the other is on the right. You can connect Mini USB to either plug. NOTE: PLEASE USE SPECIAL POWER CABLE IN DO903DASHBOARD KIT. OTHER STANDARD MINIUSB IS NOT SUITABLE FOE THE DASHBOARD. IF USE, WILL DAMAGE THE DASHBOARD.)

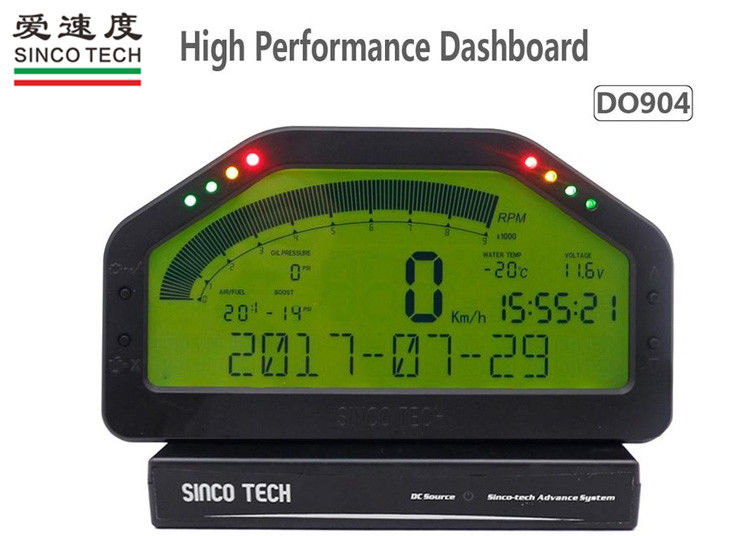

    DISPLAY:



    1, Engine RPM

    2, Speed

    3, Oil Pressure

    4, Air /Fuel Ratio

    5, Turbo

    6, Coolant Temperature

    7, Voltage

    8, Time

    9, Multi-purpose Display Section

    ABS Material Race Car Dashboard Digital LCD Display DO904 6.5 Inch Full Sensor KitABS Material Race Car Dashboard Digital LCD Display DO904 6.5 Inch Full Sensor Kit

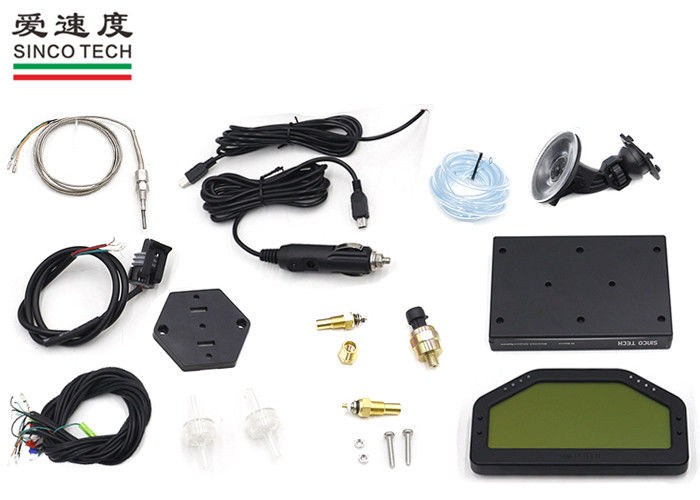

    1 Display 8 Accessories(Boost pipe,T -Fitting,Air Filter)
    2 the Data Processing Unit(DPU) 9 EXT. Temp Sensor
    3 Power Wire A 10 EXT.Temp Sensor Adapter
    4 Power Wire B 11 Sensor Wires
    5 Oil Pressure Sensor 12 Monitor Stand
    6 Water Temp Sensor& Oil Temp Sensor 13 DPU Installation Panel
    7 Boost Gauge Sensor



    1. The dashboard consists of the Monitor(1), the Data Processing Unit(DPU)(2), and several different Types of Sensors.here are two types of Power Cords. Power Cord A(3) can be plugged into the car's cigarette lighter. Power Cord B(4) can be integrated directly into the car's circuit. The DPU receives and processes data transmissions from the Sensors,and sends the processed data to the Monitor via Bluetooth.

    2. The Monitor has two sockets, one is on the left edge and the other is on the right edge, only one socket can be connected to a cord at a time. The sockets are Mini USB sockets. (IMPORTANT: This socket is incompatible with normal Mini USB cords, specialized cords must be used. Usage of incompatible cords may damage the device.)

    3. The Monitor has four buttons, positioned on the left and right side, two on each side. Upper-left button reads "Menu/OK", it is used to bring up the Settings Menu, execute the "confirm" action and other functions. Lower-left button reads "Exit/Cancel", it is used to Exit the Settings Menu and execute the "cancel" action. Upper and Lower-right buttons are “ ”,“ ” buttons respectively. They are used to scroll through options and altering the options when they

    are selected.

    4. The light sensor is positioned on the top middle of the Monitor. The backlight of the screen will change in response to the brightness of the environment, there are a total of 4 brightness levels. Two symmetrical rows of LED lights are positioned at the front of tilted edges on the Monitor, they will turn on from bottom up as the RPM increases. The colour of the four pairs lights are "green", "green", "yellow", "red".

    5. Before connecting to power, start the engine of the car. After connecting to power, the Monitor will search for the DPU automatically and establish connection.

    ABS Material Race Car Dashboard Digital LCD Display DO904 6.5 Inch Full Sensor KitABS Material Race Car Dashboard Digital LCD Display DO904 6.5 Inch Full Sensor KitABS Material Race Car Dashboard Digital LCD Display DO904 6.5 Inch Full Sensor KitABS Material Race Car Dashboard Digital LCD Display DO904 6.5 Inch Full Sensor Kit

    ABS Material Race Car Dashboard Digital LCD Display DO904 6.5 Inch Full Sensor KitABS Material Race Car Dashboard Digital LCD Display DO904 6.5 Inch Full Sensor Kit
