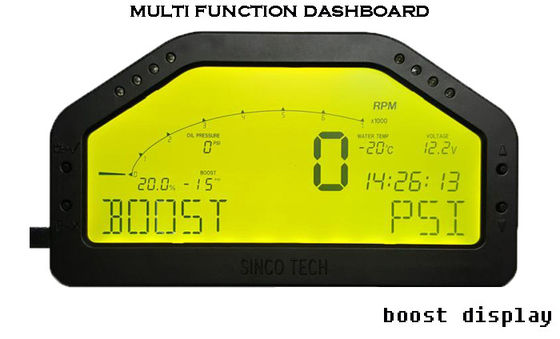

DO904II 9000 Rally Car Gauges Sensor Kit LCD Screen With Led Light / Buzzer Warning

Product Description

do904 turbo boost sensor kit turbo boost gauge LCD screen rally gauge

Description: The DO904 dashboard consists of the Monitor, the Data Processing Unit(DPU), and several different types of Sensors . The Data Processing Unit receives and processes data transmissions from the Sensors, and sends the processed data to the Monitor via Bluetooth.

Connection way: The turbo boost value can be read from display by connecting boost sensors . we have already offer a high performance universal boost sensor in it ,so that you no need to buy extra . so find the DPU , no. 4 socket , get the right sensor wires to connect the boost sensor .

The DPU Sockets : 1 to 11 are connected to the devices with corresponding numbers:

1. spare socket

       2. spare socket

3. power

4. Boost sensor

5. Oil Pressure sensor

6. Air Fuel Ratio sensor

7. Oil Temp sensor

8. Water Temp sensor

9. Exhaust Gas Temp sensor

10. RPM (green wire) and Speed meter (red wire)

11. spare socket

if you take interested in it , pls feel free contact us .
