China Race Car Gauges manufacturer

Multifunctional Electronic Boost Gauge , Car Turbo Gauge -1 - 3 Bar Display

Product Details:
Place of Origin: Made In China
Brand Name: SINCO TECH
Certification: ISO9001 / CE
Model Number: DO908 9000
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: SINCOTECH Color Box
Delivery Time: In 7days
Payment Terms: , MoneyGram,PAYPAL, T/T
Supply Ability: 1000 pcs per month

Detail Information

Product Name: Small Digital Boost Gauge Voltage: 12v
Condition: New Screen Size: 6.5 Inch
Connection: Harness Wire Function: Multifunctional
High Light:

car boost gauge

,

turbo boost meter

Product Description

-1 - 3 bar display turbo boost gauge digital LCD water proof meter

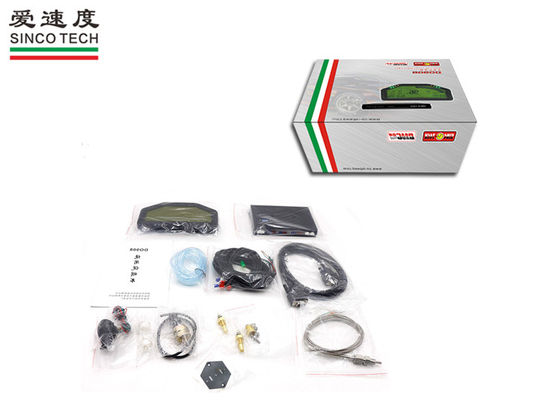

DO908 Parts list :

Display X1,Data processing unit(DPU) X1,connection wire X1,EGT sensor X1,boost sensor X1,water temperature sensorX1,oil pressure sensor X1,connection wire bundle X1 .



Parameters:

Dissipation Current +B line <200mA(when IGN ON)<1mA( when IGN OFF)

                               ILM line <5mA

Working temperature -20~+60℃(Humidity <80%)

Storage temperature -30~+80℃(humidity < 80%)

Display range:

※in order to display ,OP3 optional sensors should be prepared separately

Speed                                                          0-255Km/h

RPM                                                          0~9000rpm

OP1(subsidiary) OIL P.         0~150PSI OR 0~10BAR

OP2(subsidiary) BOOST.P   -15~45PSI OR -1~3BAR

OP3*     AIR FUEL RATIO                20~10:1

OP4(subsidiary) OIL T.             0~150℃ OR 0~300℉

OP5(subsidiary) WATER T.      0~150℃ OR 0~300℉

OP6(subsidiary) EXT T.       0~1,300℃ OR 0~2400℉

VOLT                                                              10~16V

CLOCK 24H TIME C LOCK

Speed pulse 2,4,6,8 pulse

Free pulse:1,274~16,562 pulse/km (equal to pulse of 2~26)

Cylinder number 1,2,3,4,5,6,8(loop)



Brand SINCO TECH
Name DO908 SENSOR KIT MULTI-FUNCTION DASHBOARD 9000RPM
Display Digital
Operating Voltage 9V-16V
Application All 12v Vehicle
Part List Display,the Data Processing Unit,Types Of Sensors,Installation Accessories ,Instructions manual.
Parameter Display 1. RPM
2. Speed
3. Oil Pressure
4. Air/Fuel Ratio
5. Turbo
6. Water Temp
7. Voltage

8. Oil pressure temp

9. EXT.temp


Multi-purpose display section 1. Date
2. Time
3. Engine Rpm
4. Trip Subtotal Mileage
5. ODO Total Mileage
6.0-100KM/H Testing Mode
Setting Menu

1. Set Language (CN/EN)

2. Set Date

3. Set Time

4. Set Unit (BAR-PSI ,KM/H-MPH,℉-℃)

5. Set LED (ON-OFF)

6. Set Alarm (speed limit alarm)

7. Set Speed Calibration

8. Set Cylinder Number (1-8)



Multifunctional Electronic Boost Gauge , Car Turbo Gauge -1 - 3 Bar Display 0
