2.5 Inch Combination Race Car Digital Dashboard Gauges OLED Display

Product Description

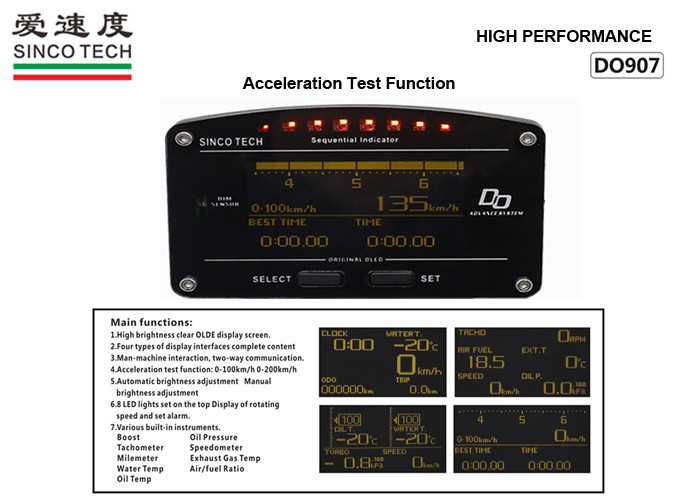

2.5 Inch Sinco Tech Combination Race Car Dashboard OLED Display Advance ZD(907)

Characters:

1-Universal used in 12v cars
2-The lowest price with best quality
3-Australia sinco tech pty ltd “SINCO TECH” brand authorizing .

4-Standard materials according to technical drawing

5-ISO9001 , CE certificates.

6-Long lasting working life time.

7-high performance and reliability
8-Ensure QUALITY after sale
9-0-100km/h , 0-200km/h testing mode
10-Professional factory with 30 years’ producing Experience

DO907 PRODUCT INTRODUCTION

A LED Light

B Screen

C Set Key

C Select Key

E Light Sensor

(1) Display

(2) Display Stand

(3) Control Key

(4) Oil Pressure Sensor

(5) Boost Sensor

(6) Water/Oil Temp Sensor

(7) Boost Pipe

(8) EXT.Temp Sensor

(9) Data Processing Unit

(10) Connection Wire

The connection from sockets 1 to 11 is respectively:

⑴ Instrument display interface

⑵ Instrument display interface

⑶ Power supply input (red～+12V black～grounding white～ACC yellow～headlight+12V)

⑷ Pressure increase sensor (red～sensor+ ,green～signal, black～sensor-)

⑸ Oil pressure sensor (red～sensor+, green～signal, black～sensor-)

⑹ Air/fuel ratio sensor (red～sensor+, green～signal, black～sensor-)

⑺ Oil temperature sensor ( green～signal, black～grounding)

⑻ Water temperature sensor ( green～signal, black～grounding)

⑼ Exhaust gas temperature sensor(green～sensor+, orange～sensor-)

⑽ Speed signal (green line) and vehicle speed sensor (orange line)

⑾ Control key interface
