Product Description

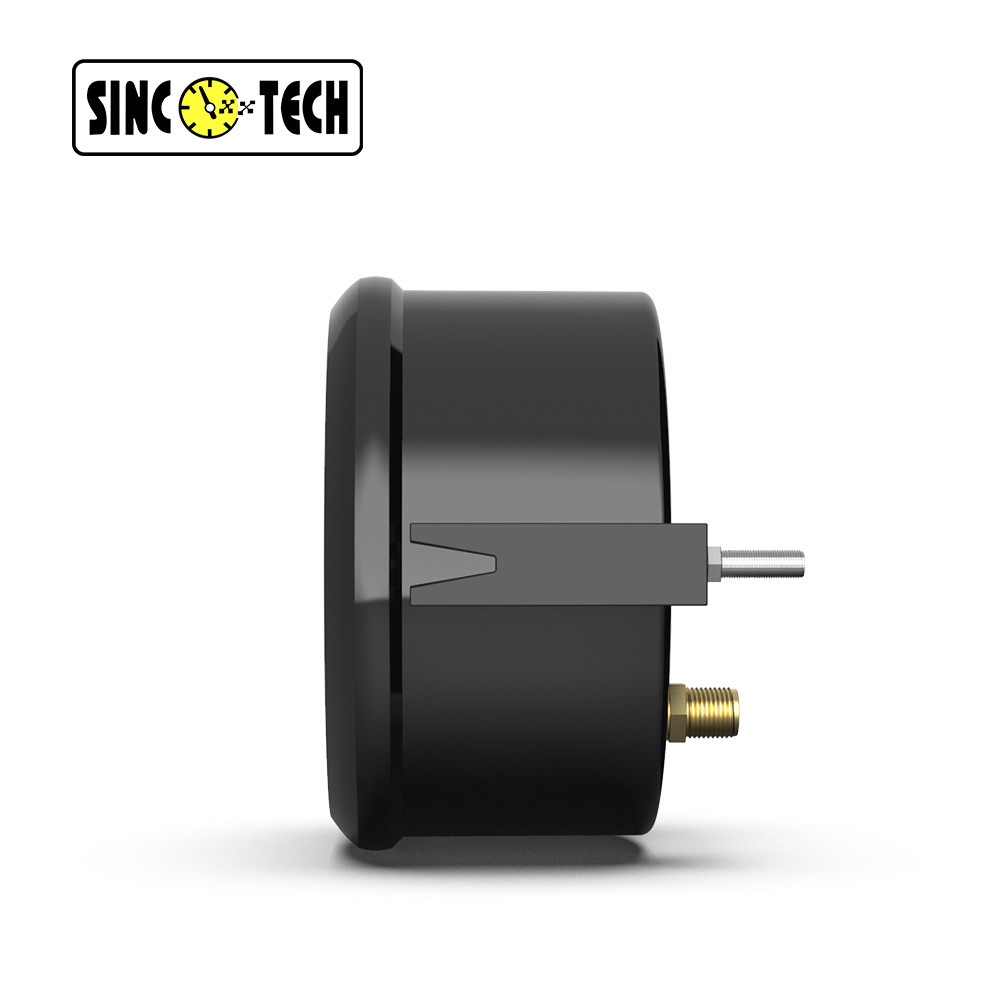

SincoTech DO917 is a 85mm GPS speedometer with 7-color backlight for 12v vehicles, displays the speed of engine precisely by stepping motor drive pointer also can display course angle and mileage in a LCD screen . IP67 waterproof and dustproof grade.
Parts list
Power connection wire
GPS speedometer
GPS antenna
Installation Instruction
Fixing dimension: 85mm(3-3/8'')
Working Volt: 8-30V,
Working Current: <=100mA
Working Temperature :-30~75℃
Storage temperature :-40~85℃
Interfaces Instructions
(1), GPS Speed Interface
The interface reads the current speed in the form of digital display, unit: KM/H, and the maximum reading speed is 200KM/H.
(2), GPS Course Interface
The value on the left indicates the course angle, Due north is 0 ° and increases clockwise. The right side is abbreviated to indicate the current course.
N -- NORTH -- course angle shows 345 °-15 °.
NE -- NORTHEAST -- course angle shows 15 °-75 °.
E -- EAST -- course angle shows 75 °-105 °.
SE -- SOUTHEAST -- course angle shows 105°-165 °.
S -- SOUTH -- course angle shows 165°-195 °.
SW -- SOUTHWEST-- course angle shows 195°-255 °.
W -- WEST -- course angle shows 255°-285 °.
NW -- NORTHWEST -- course angle shows 285°-345 °.
(3),Mileage Interface
The mileage interface displays two parts: TRIP in the upper part and total ODO in the lower part.
In the mileage display interface, long press the button for more than 4 seconds, and the TRIP mileage will be cleared.
Opening a hole in the panel (your cabin board and dashboard) with a diameter of 85mm,insert meter into the hole,the panel corresponding to the instrument panel is marked with a convex table,and open a small notch in this location,to ensure that there is at least 85mm (3 3/8'') of the instrument panel at the back of the instrument
After the instrument is mounted in the panel,screw down with a fixed ring
Connect the wire,the instrument housing is directly connected to the 12/24v power supply
Insert wire harness,firmly locked in the table
Features:
- 1. Stepper motors used for full range of stepping gauges,great feature with its less power consumption,longer life,higher precision etc.
- 2. With curved glass (with anti-fog function)
- 3. There is a snap together with the harness connector,for best and firmly connected,in order that the gauges could work even in strong viberation
- 4. 3-IN-1 functions can display speed ,course angle and mileage.
- 5. IP67 waterproof and dustproof grade.
Ruian Ispeed Automotive Electronics Co., Ltd was established in Feb,2017, our factory is professional with 30-year R&D and producing experiments in automotive instrument field.
we mainly engaged in refitted instrument ,such as:DASHBOARD,EVC,HUD,etc.Our products had passed ISO9001,CE certificates.
In past one years, our products had already delivered to many countries, such:America,Australian,Sweden,Finland,England,Thailand,France ,Dubai,etc.
welcome your further inquiry.
