Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | SINCOTECH |
| Certification: | ISO9001 / CE |
| Model Number: | 6360 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 pcs |
| Price: | negotiation |
| Packaging Details: | SINCOTECH Color Box |
| Delivery Time: | In 7days |
| Payment Terms: | , MoneyGram,PAYPAL, T/T |
| Supply Ability: | 1000 pcs per month |
|
Detail Information |
|||
| Application: | 12V Vehicle | Screen Size: | 2.5 Inch |
|---|---|---|---|
| Material: | ABS | Display: | LCD Liquid Crystal Display |
| Function: | Speedometer | Oe No.: | N/A |
| Color: | 7 Back Light | ||
| High Light: | 7 Colors RPM Gauge Tachometer,Dash Digital RPM Gauge Tachometer,Do636 Sensor RPM Gauge Tachometer |
||
Product Description

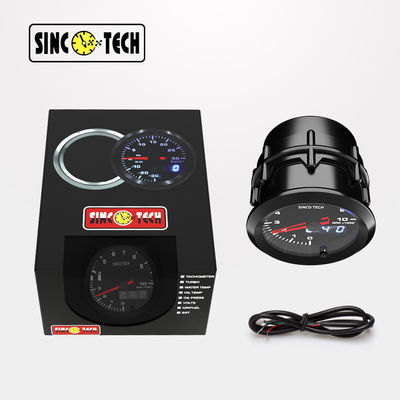

52mm 636 Sensor 7 Colors Sinco Tech Dash Digital RPM Gauge
Name: 636 series PM Motor high speed gauges
Backlight:White, Red, Green, Yellow, Purple, Blue, Pale blue
Application: 12v vehicle
Drive Voltage :DC5v
Drive Mode:1/64 MICROSTEP
Drive Current: 30mA Max
Operating Temp: -40~105 Humidity 20%~80%
Storage Temp: -40~150
Working Angle : 340°
Zero Position Accuracy:CCW:-1.5°~0.5°
Acoustic Noise:22db A MAX
Life:2000hr MIN
