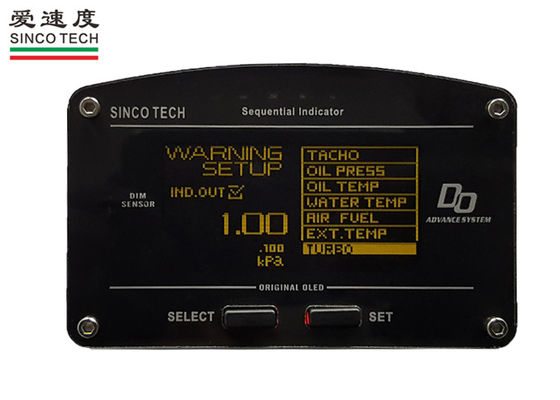

Digital Turbo Boost Gauge / ZD Gauge OLED Display With Boost Sensors

Product Description

digital OLED display advance zd turbo boost gauge with boost sensors for cars

Parts list :

Display / Display / Stand Control Key / Oil Pressure Sensor / Boost Sensor / Water/Oil Temp Sensor / Boost Pipe / EXT.Temp Sensor / Data Processing Unit / Connection Wire

Description for wiring connection

1. The senor converter is provided with 11 socket as shown in the figure below:

The connection from sockets 1 to 11 is respectively:

⑴ Instrument display interface

⑵ Instrument display interface

⑶ Power supply input (red～+12V black～grounding white～ACC yellow～headlight+12V)

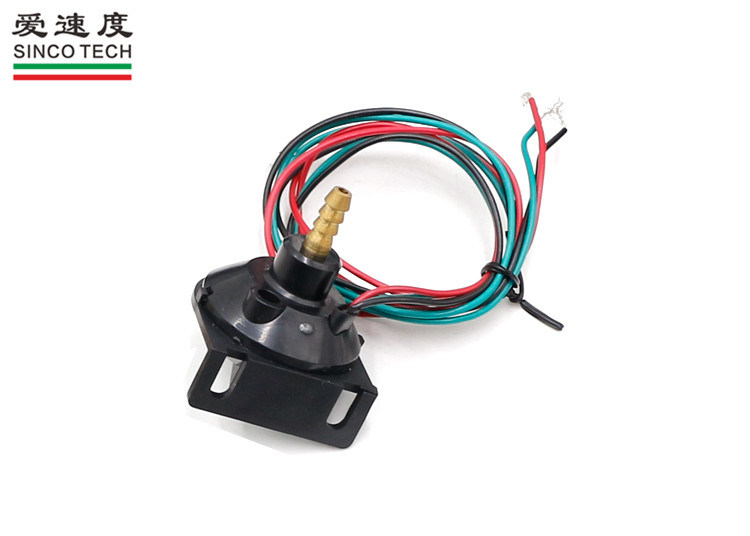

⑷ Pressure increase sensor (red～sensor+ ,green～signal, black～sensor-)

⑸ Oil pressure sensor (red～sensor+, green～signal, black～sensor-)

⑹ Air/fuel ratio sensor (red～sensor+, green～signal, black～sensor-)

⑺ Oil temperature sensor ( green～signal, black～grounding)

⑻ Water temperature sensor ( green～signal, black～grounding)

⑼ Exhaust gas temperature sensor(green～sensor+, orange～sensor-)

⑽ Speed signal (green line) and vehicle speed sensor (orange line)

⑾ Control key interface

DO907 advance zd gauge can read trubo value / set trubo alarm .also it is a multifunctional dashboard . for detail functions ,pls contact us further .
