Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | SINCO TECH |
| Certification: | CE |
| Model Number: | DO904 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Price: | negotiation |
| Packaging Details: | Color Box |
| Delivery Time: | 15days |
| Payment Terms: | D/A, L/C, D/P, T/T, , MoneyGram,Paypal |
| Supply Ability: | 5000 PCS PER MONTH |
|
Detail Information |
|||
| Product Name: | 904 Dashboard | Type: | Combination Gauge |
|---|---|---|---|
| Warranty: | 1 Year | Size: | 6.5 Inch |
| Alarm: | Buzzer And LED | Backlight: | Green |
| High Light: | Race Car Dashboard For Universal,Multifunctional race car dash display,Sensors Type race car digital dash |
||
Product Description

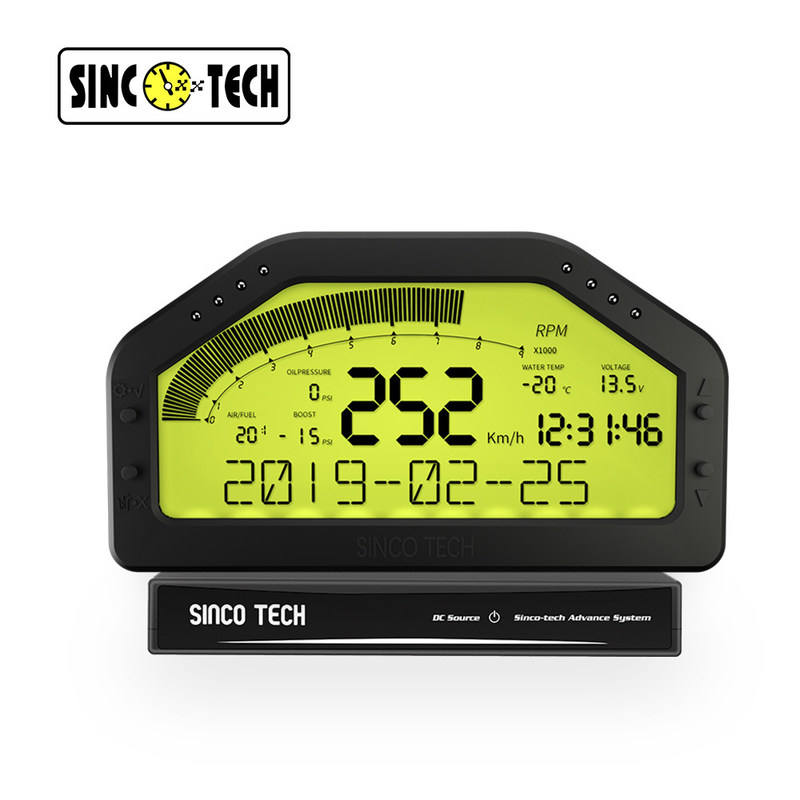

DO904 Multifunctional / Sensors Type / 12V Race Car Dashboard for Universal Cars
Description:
The DO904 dashboard consists of the Monitor, the Data Processing Unit(DPU), and several different types of Sensors . The Data Processing Unit receives and processes data transmissions from the Sensors, and sends the processed data to the Monitor via Bluetooth.The DPU receives and processes data transmissions from the Sensors, and sends the processed data to the Monitor via Bluetooth.
The DPU has 11 sockets, as shown below. Sockets 1 to 11 are connected to the devices with corresponding numbers:
Brand:SINCO TECH
Mode:DO904
Display : Digital
Size: 6.5 inch
Language: English
Operating Voltage: 9V-16V
Application: All 12v Vehicle
1. spare socket
2. spare socket
3. power
4. Boost sensor
5. Oil Pressure sensor
6. Air Fuel Ratio sensor
7. Oil Temp sensor
8. Water Temp sensor
9. Exhaust Gas Temp sensor
10. RPM (green wire) and Speed meter (red wire)
11. spare socket
It is easily installation . if any more question feel free to contact us .
